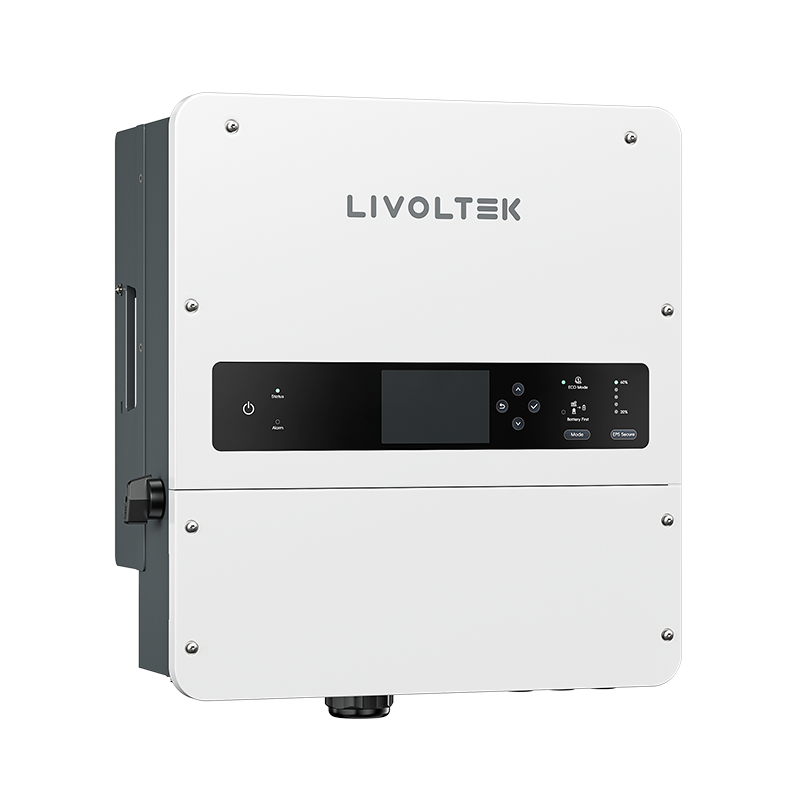

Livoltek HP1-8KS2M is a high-performance, single-phase hybrid solar inverter designed to deliver 8 kW of continuous power. It is ideal for residential and small commercial applications, seamlessly managing energy from solar panels, batteries, the grid, and backup generators.
Key Technical Specifications
- Nominal AC Output Power: 8000 Watts (8 kW)
- Max. PV Input Power: 16,000 Watts (Up to 200% oversizing allowed)
- Max. DC Input Voltage: 500 V
- Number of MPPT Trackers: 3 MPPTs (Ideal for complex roofs with up to 3 orientations)
- MPPT Voltage Range: 90 V to 500 V
- Max. Charging and Discharging Current: Up to 190 A
- Maximum Efficiency: 97.60%
- Compatible Battery Type: Low-voltage Lithium-ion (Li-ion) batteries (40V to 60V)
- Ingress Protection Rating: IP65 / IP66 (Suitable for outdoor installation
