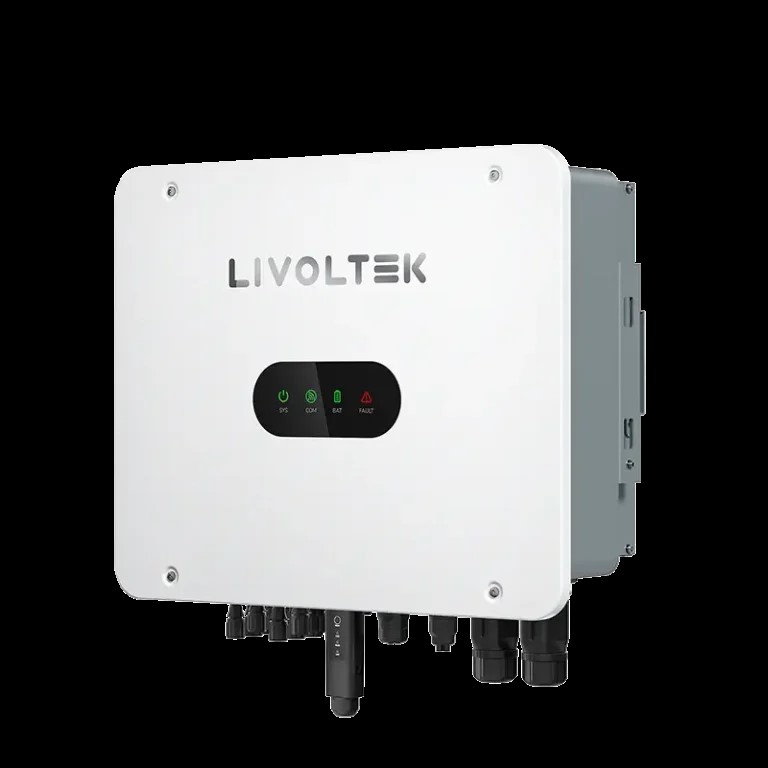

Livoltek HP3-20KT2 is a high-performance 3-Phase Hybrid Solar Inverter with a rated output capacity of 20 kW. It acts as the central management system for large residential setups, commercial properties, and small industrial facilities, smart-routing energy between solar panels, high-voltage battery storage, the utility grid, and local loads
Key Technical Specifications
Type: Three-Phase Hybrid Inverter
- Rated Output Power: 20 kW
- MPPT Voltage Range: 150–950 V
- Number of MPPTs: 3
- Battery Voltage Range: 100–700 V (High Voltage Lithium)
- Max. Charge/Discharge Current: 50 A
- AC Output Voltage: 380/400/415 V (Three-Phase)
- Dimensions (W × H × D): 595 × 485 × 235 mm
- Maximum Efficiency: 98.2%
- Backup (EPS) Output Power: 20 kW
- Protection Rating: IP65
